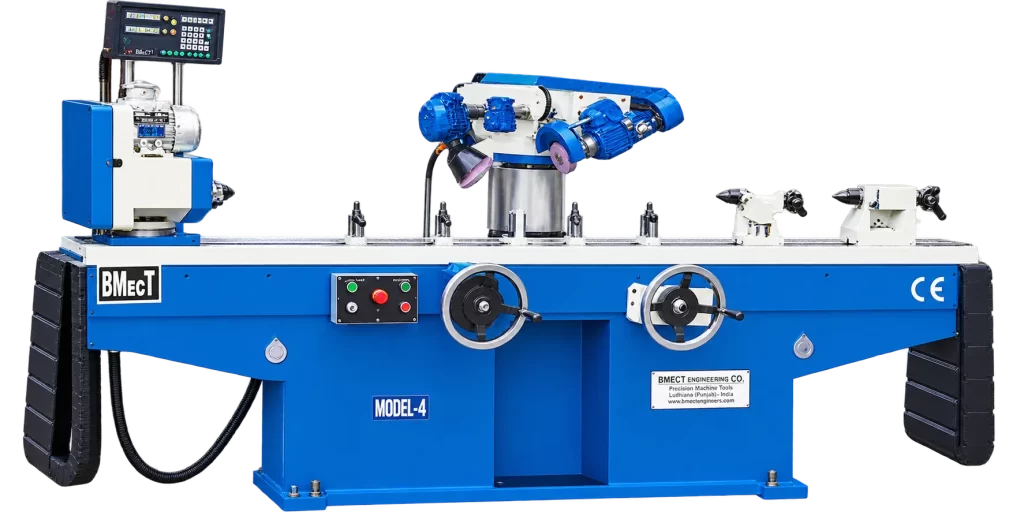

Broach Sharpening Machine Manufacturer in India

Bhagwan Udyog offers industrial machinery solutions for engineering and manufacturing applications, including equipment designed for broach tool maintenance and sharpening. A Broach Sharpening Machine is used to restore the cutting edges of broaching tools, helping maintain cutting performance, machining accuracy, and tool service life.

Designed for tool rooms, engineering workshops, and industrial maintenance facilities, broach sharpening equipment supports the reconditioning of suitable broaching tools through controlled grinding operations. Proper sharpening helps reduce tool wear, maintain cutting geometry, and improve the consistency of machined components.

What Is a Broach Sharpening Machine?

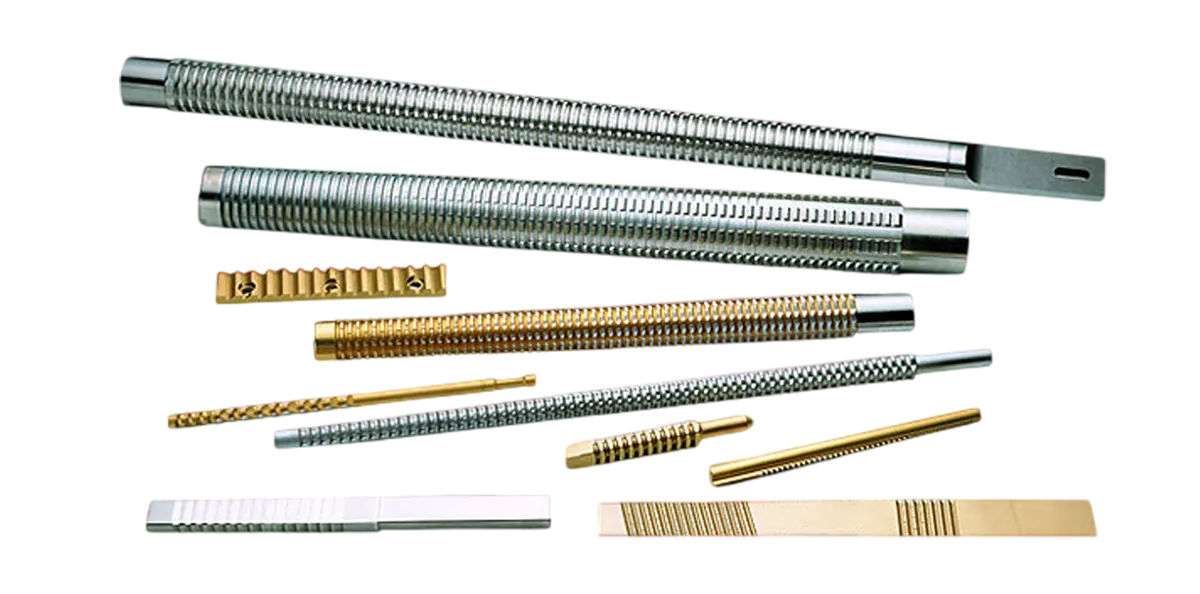

A Broach Sharpening Machine is a specialized grinding machine used to sharpen and recondition the cutting teeth of broaches. Broaches are multi-tooth cutting tools used to produce specific shapes, grooves, keyways, splines, and profiles in metal components.

During repeated use, broach cutting edges gradually wear down. A suitable sharpening machine restores the cutting edges by removing a controlled amount of material while maintaining the required tooth geometry and cutting profile.

Key Features of a Broach Sharpening Machine

Precision Grinding: Designed for controlled sharpening of suitable broach cutting edges.
Rigid Machine Construction: Supports stability during grinding operations.
Controlled Tool Positioning: Helps maintain consistent contact between the grinding wheel and cutting edge.
Reliable Grinding Performance: Supports tool maintenance and reconditioning requirements.
Industrial Applications: Suitable for tool rooms and manufacturing maintenance facilities.
Cutting Edge Restoration: Helps restore the sharpness of worn broach teeth.
Tool Life Management: Supports the maintenance and reuse of suitable broaching tools.
Workshop Utility: Helps reduce dependence on frequent replacement of regrindable tools.

Technical Specification For Broach Sharpening Machine

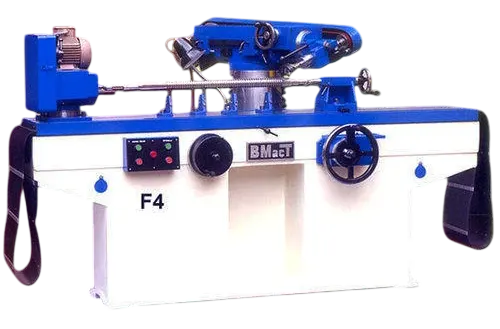

Model	F-4	F-6	F-8
Length	1500	1800	2000
Max. Sharpening Length	1300	1600	1800
Height of Centre	155	155	155
Max. Diameter of Broach	160	160	160
Max. Width of Flat Broach	160	160	160
Max. Height of Flat Broach top from Magnet Base	100	100	100
Table Surface Dimension	2182 x 330	2430 x 330	2730 x 330
No. of T-Slot & Size	1-12	1-12	1-12
HEAD STOCK
Spindle TAper	MT-4	MT-4	MT-4
No. of Speed & RPM	30,45,60,80	30,45,60,80	30,45,60,80
TAIL STOCK
Quill Taper	MT-4	MT-4	MT-4
Quill Travel	40 mm	40 mm	40 mm
LONGITUDINAL TRAVEL
One Revolution Of Hand Wheel
Slow & 1 DIV = 0.2	4.6	4.6	4.6
Rapid &1 DIV = 2.0	46.0	46.0	46.0
VERTICAL TRAVEL
One Revolution Of Hand Wheel
Slow & 1 DIV = 0.2	2.0	2.0	2.0
Rapid &1 DIV = 2.0	4.0	4.0	4.0
Vertical Travel Spindle to Table Top	500	500	500
GRINDING SLIDE SWIVEL AROUND
The Horizontal Axis	360°	360°	360°
Spindle Vertical Axis	0-90 °	0-90 °	0-90 °
MOVEMENT OF GRINDING SLIDES
Max. Cross Movement of Grinding Slide	210	210	210
Max. Vertical Movement of Spindle to Table Top	400	400	400
Max. Height to Table Top to Cup Stone	100	100	100
ELECTRICALS
Grinding Spindle Motor	1.0 HP 1425RPM	1.0 HP 1425RPM	1.0 HP 1425RPM
Work Head Motor	0.75 HP 960 RPM	0.75 HP 960 RPM	0.75 HP 960 RPM
GRINDING WHEEL
Min. & Max. Diameter Of Grinding Wheel	50-150	50-150	50-150
Number Of Grinding Wheel Speed Of Rpm	2800, 5000, 7500	2800, 5000, 7500	2800, 5000, 7500
Space Occupied (L x W x H)	370x120x160	430x120x160	490x120x160
Colour	Tata Blue & FR White	Tata Blue & FR White	Tata Blue & FR White

Enquiry · No obligation

Looking for the Right Milling Machine for Your Industry?

Talk to Bhagwan Udyog for product specifications, machine configurations, pricing and application-based recommendations.

FAQ For Bhagwan Udyog

1. What is a Broach Sharpening Machine used for?

A Broach Sharpening Machine is used to sharpen and recondition the cutting teeth of suitable broaching tools to restore cutting performance and maintain tool geometry.

2. What is a broaching tool?

A broaching tool is a multi-tooth cutting tool used to remove material progressively and produce specific shapes, grooves, keyways, splines, and profiles in a workpiece.

3. Why is broach sharpening important?

Sharpening helps maintain cutting edge sharpness, supports machining accuracy, and can extend the service life of compatible broaching tools.

4. Can a Broach Sharpening Machine extend tool life?

Yes. Properly performed sharpening can extend the usable life of regrindable broaches, provided the tool remains within its permitted regrinding limits.

5. Which industries use Broach Sharpening Machines?

These machines are relevant to automotive manufacturing, general engineering, precision machining, tool and die manufacturing, and industrial tool rooms.

6. How does broach sharpening affect component quality?

Maintaining suitable cutting edges and tooth geometry helps support consistent material removal, dimensional accuracy, and surface finish during broaching operations.

7. How can I enquire about a Broach Sharpening Machine from Bhagwan Udyog?

Contact Bhagwan Udyog with your broach dimensions, tool types, sharpening requirements, and desired production capacity to discuss suitable equipment and request a quotation.
