Gear Head Universal Milling Machine

Milling Machine

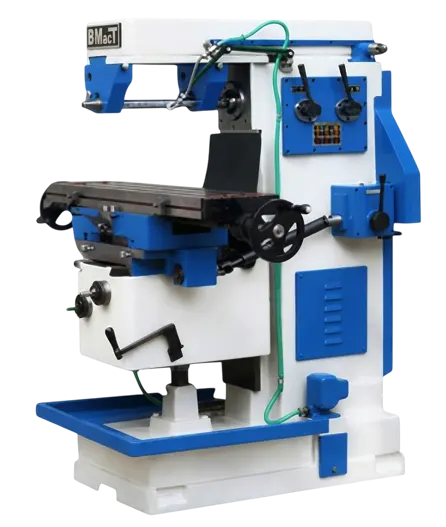

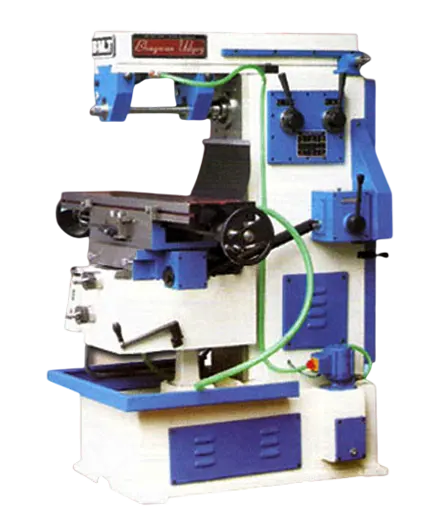

Gear Head Universal Milling Machine Manufacturer in India

Bhagwan Udyog is a manufacturer of industrial milling machines, offering reliable machining solutions for engineering workshops, manufacturing units, tool rooms, and industrial applications. Our Gear Head Universal Milling Machines are designed with a robust structure, geared spindle drive, and versatile table arrangement to support efficient and accurate machining operations.

These machines are suitable for a wide range of applications, including face milling, plain milling, angular milling, slotting, keyway cutting, and gear cutting with suitable attachments. The universal table design provides flexibility for machining components at different angles, making the machine a practical choice for diverse manufacturing requirements.

What Is a Gear Head Universal Milling Machine?

A Gear Head Universal Milling Machine is an industrial machine that uses a gear-driven spindle mechanism to transmit power for milling operations. The geared head provides selectable spindle speeds and efficient power transmission, while the universal table arrangement allows the workpiece to be positioned for different machining tasks.

This combination of geared spindle drive and table flexibility makes the machine suitable for general engineering, metalworking, component manufacturing, and precision machining applications.

Key Features of Gear Head Universal Milling Machine

Gear-Driven Spindle: Designed for effective power transmission and dependable machining performance.
Universal Table Arrangement: Supports a variety of machining setups, including angular work.
Rigid Machine Construction: Helps maintain stability during cutting operations.
Variable Spindle Speeds: Allows operators to select suitable cutting speeds according to the application.
Versatile Machining Capability: Suitable for a broad range of milling operations with appropriate tooling.
Industrial-Grade Design: Intended for regular use in engineering and manufacturing environments.
Operator-Friendly Controls: Supports convenient machine operation and setup.
Flexible Tooling Options: Can accommodate suitable milling cutters and accessories.

Technical Specification For Gear Head Universal Milling Machine

Model	NO. 1U	NO. 1.5 U	NO. 2U	NO. 1.5 V	NO. 2 V
Table Length & Width	1060 x 240	1140 x 255	1270 x 300	1140 x 255	1270 x 300
No. of T-Slots/ Size	3 x 16	3 x 16	3 x 16	3 x 16	3 x 16
Swivel	+ 45^o	+ 45^o	+ 45^o	+ 45^o	+ 45^o
Travel X Y Z	550x170x340	600x230x410	700x255x455	600x230x410	700x255x455
SPINDLE SPEEDS	9	9	9	9	9
Range of Spindle Speeds	58-768	58-768	63-727	58-768	63-727
Spindle Taper	ISO – 40	ISO – 40	ISO – 40	ISO – 40	ISO – 40
Arbor Diameter	25.4	25.4	25.4	–	–
Qull Movement	–	–	–	80	100
Feed Horizontal	3	3	3	3	3
ELECTRICALS
Motor Spindle	2 H.P. 1440	2 H.P. 1440	3 H.P. 1440	2 H.P. 1440	3 H.P. 1440
Coolant Pump Motor	0.1 H.P.	0.1 H.P.	0.1 H.P.	0.1 H.P.	0.1 H.P.
Shipping Dimensions
LengthxWidthxHeight cms	132x117x170	140x125x195	173x137x220	140×125210	173x137x270
Net Weight	1050	1350	2000	1400	2100
Gross Weight Kgs.	1300	1600	2500	1650	2600

Enquiry · No obligation

Looking for the Right Milling Machine for Your Industry?

Talk to Bhagwan Udyog for product specifications, machine configurations, pricing and application-based recommendations.

FAQ For Bhagwan Udyog

1. What is a Gear Head Universal Milling Machine?

A Gear Head Universal Milling Machine is a milling machine featuring a gear-driven spindle and a universal table arrangement. It is designed for versatile machining operations, including straight and angular milling.

2. What is the purpose of a gear head in a milling machine?

The gear head transmits power from the motor to the spindle through gears. Depending on the design, it provides selectable spindle speeds and supports efficient machining across different operating conditions.

3. What is the difference between a Gear Head Universal Milling Machine and a standard milling machine?

A Gear Head Universal Milling Machine combines a geared spindle drive with a universal table arrangement. The geared drive supports power transmission, while the universal table provides additional flexibility for angular and other machining setups.

4. What materials can be machined on a Gear Head Universal Milling Machine?

Depending on machine capacity, tooling, and cutting parameters, it can machine materials such as mild steel, carbon steel, alloy steel, cast iron, aluminium, and other engineering materials.

5. What operations can be performed on a Universal Milling Machine?

Common operations include plain milling, face milling, angular milling, slotting, keyway cutting, profile milling, and, with suitable attachments, helical milling and gear cutting.

6. Can a Gear Head Universal Milling Machine perform gear cutting?

Yes. Gear cutting may be performed when the machine has the appropriate indexing equipment, cutters, workholding arrangements, and required setup.

7. Is a Gear Head Universal Milling Machine suitable for heavy-duty machining?

It can be suitable for demanding machining applications when the machine's rated capacity, spindle power, tooling, and operating conditions match the job requirements.

8. Which industries use Gear Head Universal Milling Machines?

These machines are used in general engineering, automotive manufacturing, tool rooms, metalworking, industrial component production, maintenance workshops, and mechanical engineering facilities.
