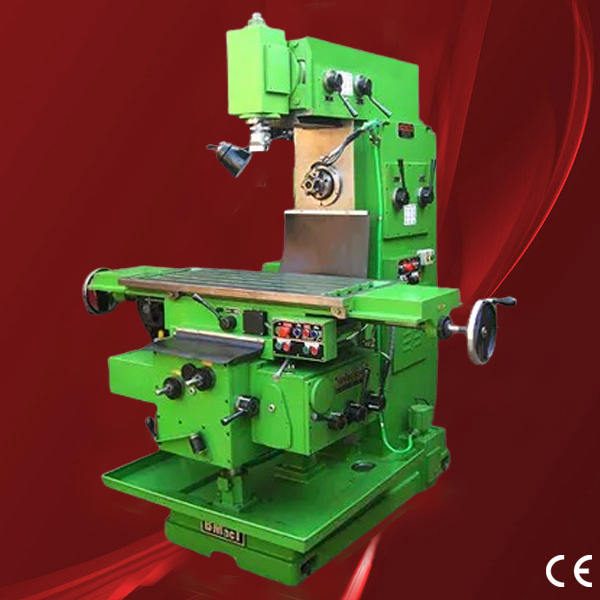

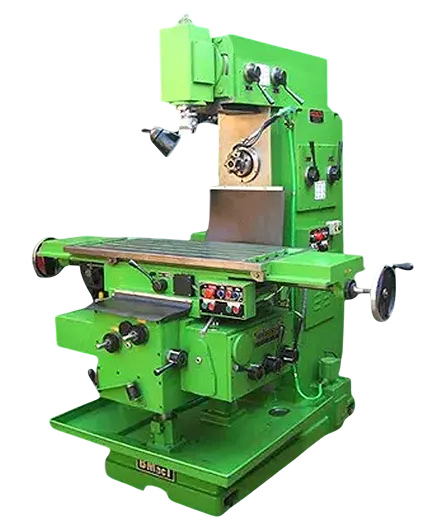

Double Spindle H & V Milling Machine Manufacturer in India

Bhagwan Udyog offers industrial milling machine solutions for engineering workshops, manufacturing units, and metalworking industries. The Double Spindle Horizontal & Vertical (H & V) Milling Machine is designed to provide greater machining flexibility by combining horizontal and vertical milling capabilities in a single machine configuration.

This machine is suitable for applications that require different cutting orientations, helping manufacturers perform a variety of machining operations with appropriate tooling and setups. Its dual-spindle arrangement can support versatile machining requirements in general engineering, automotive component manufacturing, tool rooms, and industrial production facilities.

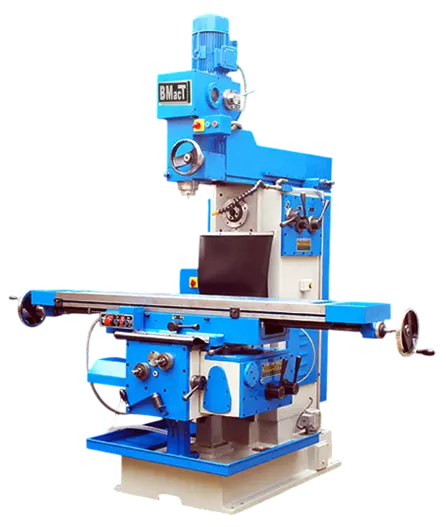

What Is a Double Spindle H & V Milling Machine?

A Double Spindle H & V Milling Machine is a milling machine designed with horizontal and vertical spindle arrangements. The horizontal spindle is suitable for operations using compatible horizontal milling cutters, while the vertical spindle supports operations such as face milling, end milling, slotting, and profile machining.

By combining both machining orientations, this machine can provide flexibility for workshops handling different workpiece shapes and machining requirements. The actual capabilities depend on the machine design, spindle configuration, and available accessories.

Key Features of Double Spindle H & V Milling Machine

Dual-Spindle Configuration: Combines horizontal and vertical milling capabilities in one machine.
Versatile Machining: Supports a variety of machining operations using suitable cutters and tooling.
Rigid Machine Construction: Designed to provide stability during cutting operations.
Flexible Workpiece Setup: Supports different machining orientations according to the job requirements.
Industrial Design: Suitable for engineering and manufacturing environments.
Multiple Machining Options: Helps accommodate a range of workpiece shapes and sizes within the machine’s capacity.
Workshop Productivity: Can reduce the need to move certain jobs between separate milling machines.
Tooling Flexibility: Can accommodate compatible milling cutters and accessories.

Technical Specification For Double Spindle H & V Milling Machine

UNIVERSAL & RAMTURRET MILLING MACHINE
Model	BZ (RT) 2 U.E	BZ (RT) 3 U.E	BZ (RT) 4 U.E	BZ (RT) 5 U.E
Table
Working Space (mm)	1300 x 300	1400 x 330	1600 x 350	1900 x 400
No. and width of T Nut	3.16	3.18 T NUT	3.18 T NUT	3.18 T NUT
Centre distance between T Slots	70	80	85	90
Longitudinal Traverse by Power X (mm)	700	800	1000	1200
Cross Traverse by Power Y (mm)	215	260	340	380
Vertical Traverse by Power Z (mm)	450	510	600	650
FEEDS
No. of Feeds	18	18	18	18
Range of Longitude Feed/ (mm)	23-420	23-420	23-420	23-420
Range of Cross Feed/ (mm)	23-420	23-420	23-420	23-420
Range of Vertical Feed/ (mm)	3-70	3-70	3-70	3-70
No. of Rapid X Y Z	1	1	1	1
Rapid Long & Cross/ (mm)	1050	1050	1050	1050
Rapid Vertical/ (mm)	175	175	175	175
MILLING SPINDLE
No. of Spindle Speeds	12	12	12	12
Speed Range	40 to 1200 RPM	40 to 1200 RPM	40 to 1200 RPM	40 to 1200 RPM
Spindle Nose	ISO – 40	ISO – 40	ISO – 40	ISO – 50
Arbor Diameter (mm)	25.4mm	25.4mm	32mm	40mm
VARTICAL HEAD
Spindle Nose	ISO 40	ISO 40	ISO 40	ISO 40
Quill Traverse (mm)	127	127	127	127
No. of Speeds	8	8	8	8
Speed Range RPM	60 to 2250	60 to 2250	60 to 2250	60 to 2250
Ram Traverse Mannual	500	550	600	650
Swivel of Head	90o	90o	90o	90o
POWER
Main Motor	3 H.P	5 H.P	7.5 H.P	10 H.P
Feed Motor	2 H.P	2 H.P	3 H.P	3 H.P
Vartical Spindle Motor	2 H.P	3 H.P	3 H.P	3 H.P
Coolant Motor	0.1 H.P.	0.1 H.P.	0.1 H.P.	0.1 H.P.
SHIPPING DIMENSIONS
Length x Width x Height (cm)	173 x 137 x 200	182 x 160 x 218	198 x 168 x 234	210 x 180 x 255
Net Weight Kgs.	2200	3200	3700	4500
Gross Weight K.gs.(Approx)	2600	3700	4300	5000

Enquiry · No obligation

Looking for the Right Milling Machine for Your Industry?

Talk to Bhagwan Udyog for product specifications, machine configurations, pricing and application-based recommendations.

FAQ For Bhagwan Udyog

1. What is a Double Spindle H & V Milling Machine?

It is a milling machine designed with horizontal and vertical spindle arrangements to support different machining operations using compatible tooling.

2. What does H & V mean in a milling machine?

H & V stands for Horizontal and Vertical. It refers to the two spindle orientations available in the machine configuration.

3. What is the advantage of a Double Spindle H & V Milling Machine?

Its main advantage is machining flexibility. The combined horizontal and vertical arrangements can accommodate different cutting orientations within one machine.

4. What operations can be performed on a Double Spindle H & V Milling Machine?

Depending on the machine and tooling, operations may include face milling, plain milling, end milling, slotting, keyway cutting, side milling, and profile machining.

5. What is the difference between horizontal and vertical milling?

Horizontal milling uses a horizontally oriented spindle, while vertical milling uses a vertically oriented spindle. Each arrangement suits different cutter types, workpiece setups, and machining operations.

6. Which industries use Double Spindle H & V Milling Machines?

These machines may be used in general engineering, automotive manufacturing, tool rooms, metalworking industries, component production, and maintenance workshops.

7. How do I select the right Double Spindle H & V Milling Machine?

Consider workpiece dimensions, material, spindle power, spindle speed ranges, table size, machine travel, required accuracy, tooling, and production volume.

8. How can I request a quotation from Bhagwan Udyog?

Contact Bhagwan Udyog with your workpiece details, required machining operations, production requirements, and preferred machine specifications to discuss suitable configurations and request a quotation.
