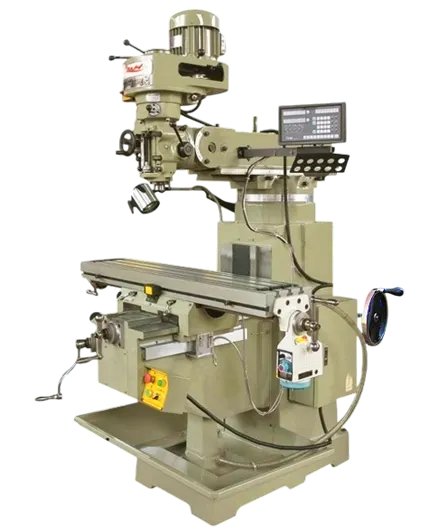

MCMILL Turret Milling Machine
SALIENT FEATURES |
|
| 1.CE – European Standard Certified Machine. | |
| 2.Double lock on Saddle, Ram & Knee. | |
| 3.X-Axis & Y-Axis lined with Turcite B Coating | |
| 4.Double Speed motor for high RPM | |
| 5.Built in standard coolant tank in the base of the machine. | |
| 6.Electrical Panel Box Fuse with overhauling. | |
| 7.Relays & other electrical items of reputed make. | |
|
8.Hardened & Ground – X&Y Slide ways.
|
|
STANDARD ACCESSORIES |
OPTIONAL ACCESSORIES |
|
2 Axis DRO
|
8 Pcs Collet Set,
|
|
Coolant Equipment
|
Collet Adaptor – ISO30
|
|
Coolant Guard
|
Rotary Table – 10”,
|
|
Machine Lamp
|
Boring Head,
|
|
Tool Box
|
Auto Feed for Longitudinal Axis
|
|
Lubrication System
|
58 Pcs Clamping Kit
|
|
Electric Control Panel
|
6 Inches Milling Vice
|
|
Chip Cover (Front & Back)
|
|
|
Meehanite Casting
|
|
|
Draw Bar
|
|
|
Instruction Manual
|
|
Technical Specifications
|
Specifications |
MCMILL1050 |
MCMILL 1054 |
|
Bed Size |
1270 x 254 MM |
1370 x 254 MM |
|
Longitudnal Travel |
830
|
960
|
|
Cross Travel |
400
|
400
|
|
Vertical Travel |
400
|
400
|
|
Head Type |
Square |
Square
|
|
Table T-slots (mm) |
16x3x63 |
16x3x63
|
|
Spindle Motor (HP) |
3 |
3
|
|
Spindle Speed (RPM) |
16 Steps/66-4540 RPM |
16 Steps/66-4540 RPM |
|
Spindle Taper |
R8 |
ISO 30 |
|
Spindle Nose to Table Top (mm) |
0-428+ |
0-428+ |
|
Quill Travel(mm) |
127
|
127
|
|
Auto Quill Feeds(per rev in mm) |
0.40/0.08/0.15 |
0.40/0.08/0.15 |
|
Head Swivel |
90 Deg (R&L), 45 D (F&B) |
90 Deg (R&L), 45 D (F&B) |
|
Ram Travel(mm) |
480 |
480 |
|
Net Weight(kgs) |
1150
|
1150
|
|
Guideways (Y Axis) |
Dovetail |
Dovetail
|
|
Guideways (Z Axis) |
55dg Swallow Tail |
55dg Swallow Tail |
