All Geared Vertical Milling Machine

Milling Machine

All Geared Vertical Milling Machine Manufacturer in India

Bhagwan Udyog is a reliable All Geared Vertical Milling Machine Manufacturer in India, offering robust and precision-engineered milling solutions for a wide range of industrial machining applications. Our All Geared Vertical Milling Machines are designed with rigid construction, a powerful geared head and reliable spindle performance to support accurate and efficient machining.

These machines are suitable for face milling, plain milling, slotting, drilling, boring, tapping and other machining operations. Their vertical spindle arrangement provides excellent accessibility to the workpiece, making them suitable for engineering workshops, tool rooms, automotive industries, fabrication units and general manufacturing applications.

What is an All Geared Vertical Milling Machine?

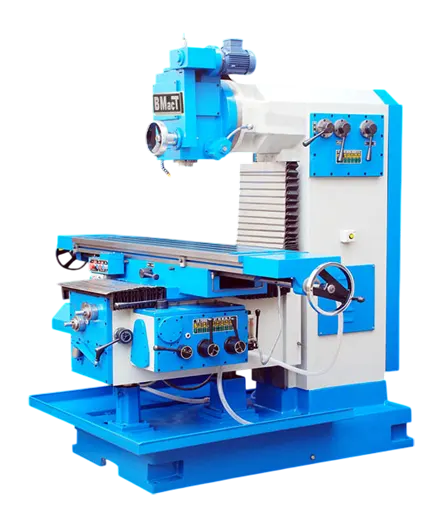

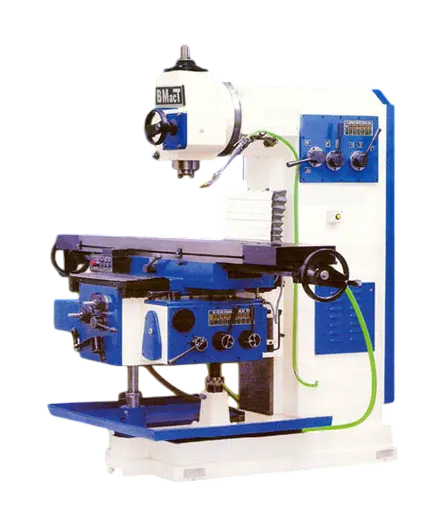

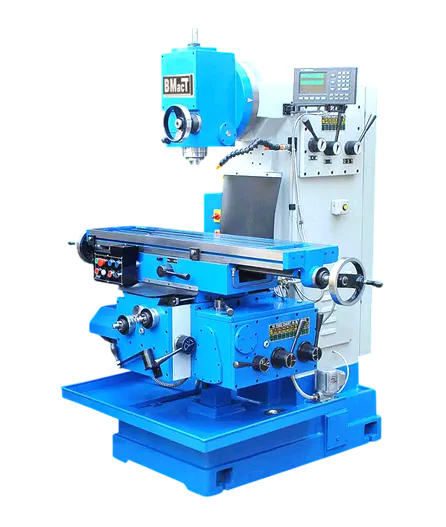

An All Geared Vertical Milling Machine is an industrial milling machine equipped with a vertical spindle and geared drive mechanism. The geared head provides efficient power transmission from the motor to the spindle, allowing the machine to handle a wide range of cutting operations.

The vertical spindle configuration makes the machine particularly suitable for machining flat surfaces, slots, pockets, holes, profiles and other components where vertical cutting access is required.

Key Features

Heavy-duty and rigid machine construction
All-geared spindle drive system
Powerful and reliable spindle performance
Vertical spindle arrangement
Multiple spindle speed options
Robust worktable and saddle
Smooth and stable machining operation
Suitable for a wide range of cutting tools
High operational reliability
Designed for industrial applications
Easy-to-operate controls
Suitable for job work and production environments

Advantages of All Geared Vertical Milling Machine

Heavy-Duty Construction

The rigid machine structure provides stability during machining and helps minimize vibration during demanding operations.

Efficient Geared Drive

The geared transmission system provides effective power transfer to the spindle and supports consistent cutting performance.

Versatile Machining

The machine can perform several machining operations using appropriate cutters, drills and accessories.

Improved Productivity

Multiple spindle speed settings allow operators to select suitable machining conditions for different materials and applications.

Reliable Performance

The robust construction and industrial-oriented design make the machine suitable for regular workshop and manufacturing use.

Technical Specification For Vertical Milling Machine

Model	MAC2 V (AFR)E	MAC3 V (AFR)E	MAC4 V (AFR)E	MAC5 V (AFR)E	MAC6 V (AFR)E	MAC7 V (AFR)E
Table
Working Space (in mm)	1300 x 300	1400 x 330	1600 x 350	1800 x 400	2000 x 450	2300 X 500
No. & Width of T Nut	3.16	3.20 T NUT	3.20 T NUT	3.20 T NUT	3.20 T Nut	5.22 T Nut
Centre Distance Between T Slots	70	80	85	90	95	95
Longitudinal Travel By Power X (in mm)	700	800	1000	1200	1300	1400mm
Cross Traverse By Power Y (in mm)	215	260	340	380	450	500mm
Vertical Travel By Power Z (in mm)	400	460	550	600	650	700mm
Min. Distance From Left Hand Table End to Spindle Center	250	300	350	400	450
MILLING SPINDLE
No. of Speeds	12	12	12	12	12	12
Speed Range	40-1200	40-1200	40-1200	40-1200	40-1200	40-1200
Spindle Nose	ISO – 40	ISO – 40	ISO – 40	ISO – 50	ISO – 50	ISO-50
Min,/ Max. Distance, Centre Milling Spindle/ Lower Face of Milling Spindle to Table Top Surface	0-400	0-460	0-550	0-600	0-650	0-700
Distance Spindle Centre to Column	320	350	370	400	500	650
Face Vertical Movement of Quill	75	95	95	100	100	105
Swivel of Milling Head On Either Side	45o	45o	45o	45o	45o	45o
FEEDS
No. of Feeds	18	18	18	18	18	18
Feed Range : Long & Cross	23-420	23-420	23-420	23-420	23-420	23-420
Vertical	3-70	3-70	3-70	3-70	3-70	3-70
Rapid Traverse : Long Cross	1050	1050	1050	1050	1050	1050
Vertical	175	175	175	175	175	175
POWER
Main Motor	3 H.P	5 H.P	7.5 H.P	10 H.P	10 H.P.	15 H.P
Feed Motor	2 H.P	2 H.P	3 H.P	3 H.P	5 H.P.	5 H.P
Coolant Motor	0.1 H.P.	0.1 H.P.	0.1 H.P.	0.1 H.P.	0.1 H.P.	0.1 H.P
SHIPPING DIMENSIONS
Length x Width x Height	188 x 157 x 208	213 x 175 x 234	246 x 188 x 246	260 x 200 x 260	280 x 220 x 275	320 X 260 X 320
Net Weight K.gs.	2200	3200	3700	4500	5500	7000 KGS
Gross Weight	2600	3700	4300	5000	6300	8300 KGS

Enquiry · No obligation

Looking for the Right Milling Machine for Your Industry?

Talk to Bhagwan Udyog for product specifications, machine configurations, pricing and application-based recommendations.

FAQ For Bhagwan Udyog

1. What is an All Geared Vertical Milling Machine?

An All Geared Vertical Milling Machine is a milling machine with a vertically positioned spindle and a geared transmission system. It is designed for various milling, drilling and machining operations.

2. What is the advantage of an all-geared milling machine?

The geared drive system provides efficient power transmission to the spindle and is suitable for applications requiring consistent and reliable cutting performance.

3. What operations can be performed on a Vertical Milling Machine?

Common operations include face milling, end milling, slotting, drilling, boring, tapping, reaming, keyway cutting and profile machining.

4. What materials can be machined using a Vertical Milling Machine?

Depending on the machine capacity, tooling and cutting parameters, the machine can be used for materials such as mild steel, carbon steel, alloy steel, cast iron, aluminium and other engineering materials.

5. What is the difference between a Vertical Milling Machine and a Universal Milling Machine?

A vertical milling machine has a vertically oriented spindle and is particularly suitable for vertical cutting operations. A universal milling machine provides additional flexibility through its universal table arrangement and is suitable for a wider range of angular and complex machining operations.

6. Is an All Geared Vertical Milling Machine suitable for heavy-duty machining?

Yes. The rigid construction and geared drive make it suitable for a variety of industrial and heavy-duty machining applications, provided the operation remains within the machine's rated capacity.

7. Can a Vertical Milling Machine be used for drilling?

Yes. With the appropriate tooling and machine configuration, a vertical milling machine can perform drilling and related hole-making operations.

8. Which industries use All Geared Vertical Milling Machines?

A vertical milling machine has its spindle oriented vertically. A universal milling machine is more versatile, supporting a wider range of milling operations. We make both in all geared and gear head versions. Contact our team if you are unsure which suits your work.
