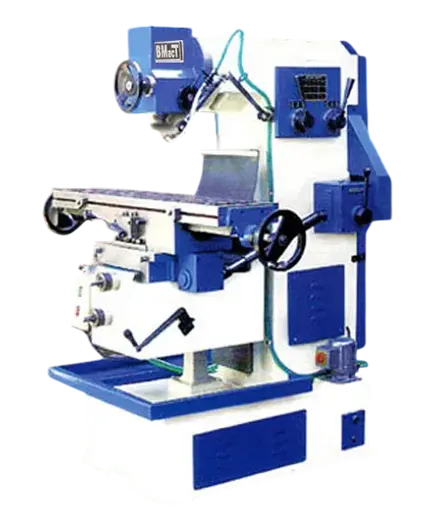

Gear Head Vertical Milling Machine
Technical Specifications
| Model |
BZ 1060 U |
BZ 1140 U |
BZ 1270 U |
BZ 1140 V |
BZ 1270 V |
| Table Length & Width |
1060 x 240 |
1140 x 255 |
1270 x 300 |
1140 x 255 |
1270 x 300 |
| No. of T-Slots/ Size |
3 x 16 |
3 x 16 |
3 x 16 |
3 x 16 |
3 x 16 |
| Swivel |
+ 45o |
+ 45o |
+ 45o |
+ 45o |
+ 45o |
| Travel X Y Z |
550x170x340 |
600x230x410 |
700x255x455 |
600x230x410 |
700x255x455 |
| SPINDLE SPEEDS |
9 |
9 |
9 |
9 |
9 |
| Range of Spindle Speeds |
58-768 |
58-768 |
63-727 |
58-768 |
63-727 |
| Spindle Taper |
ISO – 40 |
ISO – 40 |
ISO – 40 |
ISO – 40 |
ISO – 40 |
| Arbor Diameter |
25.4 |
25.4 |
25.4 |
– |
– |
| Qull Movement |
– |
– |
– |
80 |
100 |
| Feed Horizontal |
3 |
3 |
3 |
3 |
3 |
| ELECTRICALS |
| Motor Spindle |
2 H.P. 1440 |
2 H.P. 1440 |
3 H.P. 1440 |
2 H.P. 1440 |
3 H.P. 1440 |
| Coolant Pump Motor |
0.1 H.P. |
0.1 H.P. |
0.1 H.P. |
0.1 H.P. |
0.1 H.P. |
| Shipping Dimensions |
| LengthxWidthxHeight cms |
132x117x170 |
140x125x195 |
173x137x220 |
140×125210 |
173x137x270 |
| Net Weight |
1050 |
1350 |
2000 |
1400 |
2100 |
| Gross Weight Kgs. |
1300 |
1600 |
2500 |
1650 |
2600 |
