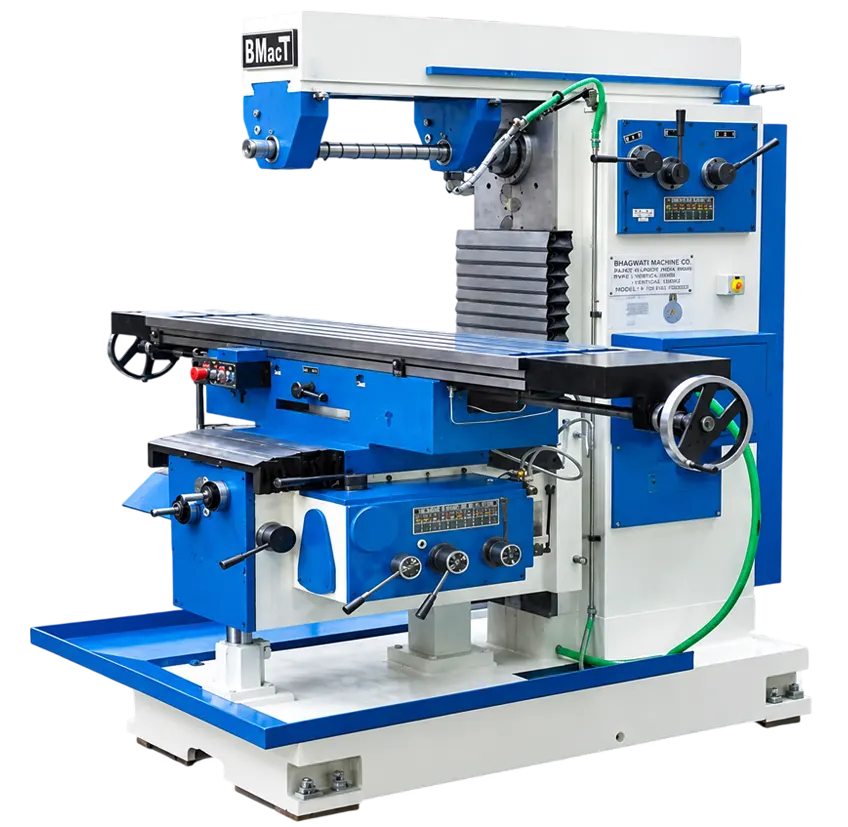

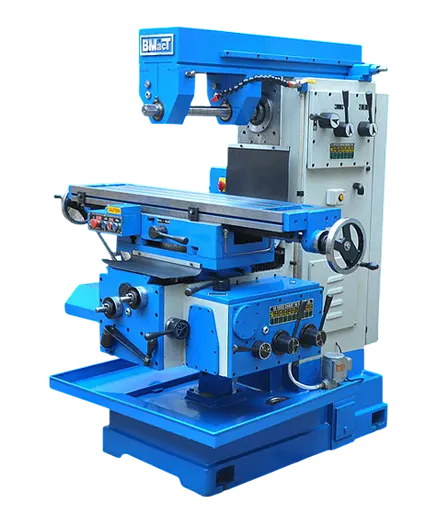

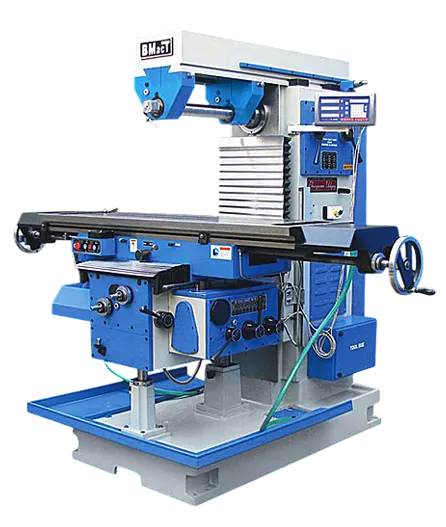

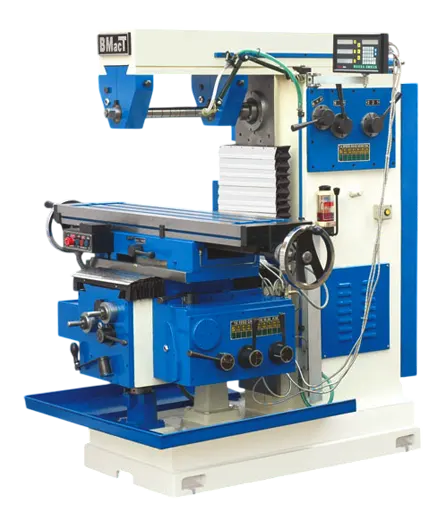

All Geared Universal Milling Machine
Milling Machine
All Geared Universal Milling Machine Manufacturer in India
Bhagwan Udyog is a trusted All Geared Universal Milling Machine Manufacturer in India, offering robust and precision-engineered milling machines for a wide range of industrial machining applications. Our All Geared Universal Milling Machines are designed with a rigid construction, efficient geared transmission system, and reliable machining performance to meet demanding production requirements.
These machines are suitable for milling, drilling, slotting, boring, facing, gear cutting and other precision machining operations. Their universal configuration provides greater flexibility, making them an ideal choice for engineering workshops, tool rooms, automotive component manufacturers and general manufacturing industries.
What is an All Geared Universal Milling Machine?
An All Geared Universal Milling Machine is a versatile milling machine equipped with a geared drive system for transmitting power efficiently to the spindle. Unlike belt-driven machines, the geared arrangement provides dependable power transmission and is suitable for heavy-duty machining operations.
The universal design allows the worktable to be adjusted and swiveled for different machining requirements. This makes the machine suitable for producing complex components, angular surfaces, slots, grooves, gears and other precision-machined parts.
Key Features
- Heavy-duty and rigid machine construction
- All-geared head for efficient power transmission
- Universal swiveling table for versatile machining
- High machining stability and accuracy
- Suitable for heavy-duty industrial applications
- Smooth and reliable spindle operation
- Multiple spindle speed options
- Robust worktable and saddle construction
- Suitable for various cutting tools and accessories
- Designed for long-term industrial operation
- Easy-to-operate machine controls
- Suitable for both job-work and production applications
Advantages of All Geared Universal Milling Machine
Heavy-Duty Performance
The rigid construction and geared transmission system make the machine suitable for demanding machining operations and continuous industrial use.
Versatile Machining
The universal table configuration allows machining at different angles and positions, increasing the range of possible applications.
Efficient Power Transmission
The geared drive system provides effective power transfer from the motor to the spindle, supporting stable cutting performance.
Improved Productivity
Multiple spindle speeds and flexible machine settings allow operators to select suitable machining conditions for different materials and operations.
Reliable Accuracy
A rigid machine structure helps minimize vibration during machining and supports consistent dimensional accuracy.
All Geared Universal Milling Machine Manufacturer & Supplier in India
Looking for a reliable All Geared Universal Milling Machine Manufacturer, Supplier or Exporter in India? Bhagwan Udyog offers industrial milling solutions designed for engineering and manufacturing applications.
Our machiAll Geared Universal Milling Machine Manufacturer & Supplier in India
nes combine versatility, rigidity, efficient power transmission and dependable machining performance, making them suitable for workshops and industries requiring accurate and efficient material removal.
Contact Bhagwan Udyog to discuss your machine requirements and receive product specifications and a quotation.
Technical Specification For Universal Milling Machine
| Model | MAC2 U (AFR)E | MAC3 U(AFR)E | MAC4 U(AFR)E | MAC5 U(AFR)E | MAC6 U(AFR)E | MAC7 U(AFR)E |
| Table | ||||||
| Working Space | 1300 x 300 | 1400 x 330 | 1600 x 350 | 1800 x 400 | 2000 x 450 | 2300 X 500 |
| T.Slot Nos/ Size | 3.16 | 3.20 T NUT | 3.20 T NUT | 3.20 T NUT | 3.20 T NUT | 5.22 T NUT |
| T.Slot Centre | 70 | 80 | 85 | 90 | 95 | 95 |
| Swivel | + 45o | + 45o | + 45o | + 45o | + 45o | |
| Longitudinal Travel By Power X | 700mm | 800mm | 1000mm | 1200mm | 1300mm | 1400mm |
| Cross Travel By Power Y | 215 | 260 | 340 | 380 | 450 | 500mm |
| Vertical Travel By Power Z | 400 | 460 | 550 | 600 | 650 | 700mm |
| FEEDS | ||||||
| No. of Feeds | 18 | 18 | 18 | 18 | 18 | 18 |
| Range of Longtitude Feed/Min | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Range of Cross Feed/ Min. | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Range of Vertical Feed/ Min. | 3-70 | 3-70 | 3-70 | 3-70 | 3-70 | 3-70 |
| No. of Rapid Feed | 1 | 1 | 1 | 1 | 1 | 1 |
| Rapid Long & Cross/ Min. | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Rapid Vertical/ Min. | 175 | 175 | 175 | 175 | 175 | 175 |
| SPINDLE | ||||||
| No. of Spindle Speeds. | 12 | 12 | 12 | 12 | 12 | 12 |
| Range of Spindle Speeds | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM | 40 to 1200 RPM |
| Spindle Taper | ISO – 40 | ISO – 40 | ISO – 40 | ISO – 50 | ISO – 50 | ISO – 50 |
| Arbor Diameter | 25.4 | 25.4 | 32 | 40 | 40 | 40mm |
| POWER | ||||||
| Main Motor | 3 H.P | 5 H.P | 7.5 H.P | 10 H.P | 10 H.P. | 15 H.P |
| Feed Motor | 2 H.P | 2 H.P | 3 H.P | 3 H.P | 5 H.P. | 5 H.P |
| Coolant Motor | 0.1 H.P. | 0.1 H.P. | 0.1 H.P. | 0.1 H.P. | 0.1 H.P. | 0.1 H.P |
| SHIPPING DIMENSIONS | ||||||
| Length x Width x Height (in cms.) | 173 x 137 x 200 | 182 x 160 x 218 | 198 x 168 x 234 | 210 x 180 x 255 | 230 x 200 x 275 | 320 X 250 X 320 |
| Net Weight K.gs. | 2200 | 3200 | 3700 | 4500 | 5500 | 7000KGS |
| Gross Weight K.gs. | 2600 | 3700 | 4300 | 5000 | 6300 | 8300KGS |
Enquiry · No obligation
Looking for the Right Milling Machine for Your Industry?
FAQ For Bhagwan Udyog
What is an All Geared Universal Milling Machine?
An All Geared Universal Milling Machine is a versatile milling machine that uses a geared transmission system to drive the spindle. Its universal table arrangement allows different types of machining operations and angular work.
What is the difference between a geared and belt-driven milling machine?
A geared milling machine uses gears for power transmission, while a belt-driven machine uses belts and pulleys. Geared systems are generally preferred for applications requiring stronger and more direct power transmission.
What materials can be machined on an All Geared Universal Milling Machine?
Depending on the machine configuration, suitable tooling and cutting conditions, these machines can be used for machining materials such as mild steel, carbon steel, alloy steel, cast iron, aluminium and other engineering materials.
What operations can be performed on a Universal Milling Machine?
Common operations include face milling, plain milling, angular milling, slotting, keyway cutting, drilling, boring, reaming, tapping and gear cutting.
